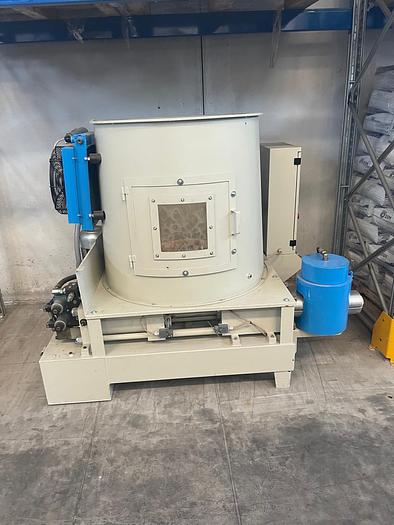

Comafer Bricchettatrice DIN 140

APPROXIMATE HOURLY PRODUCTION MIN ÷ MAX kg/h 70÷ 140 BRIQUETTE DIAMETER mm 70 MAX BRIQUETTE LENGTH at each pressing mm 70 INSTALLED POWER PUMP MOTOR kW 9.2 INSTALLED POWER OIL COOLING kW 0.75 MAIN VOLTAGE V 400 MAIN FREQUENCY Hz 50 COMPACTOR CYLINDER DIAMETER mm 180 CYLINDERS n° 3 MAXIMUM PRESSURE OF THE HYDRAULIC SYSTEM bar 200 MAXIMUM PRESSURE COMPACTOR CYLINDER bar 100 MAXIMUM COMPACTION PRESSURE bar 660 MAXIMUM COMPACTION FORCE ton 25.5 HOPPER DIAMETER mm 1 000 HOPPER HEIGHT mm 930 HOPPER VOLUME m3 0.7 MAX WEIGHT OF MATERIAL LOADED INTO THE HOPPER kg 180 WIDTH mm 1 200 HEIGHT mm 1 480 DEPTH mm 1 785 WEIGHT kg 1 180 SHIPPING VOLUME m3 3
